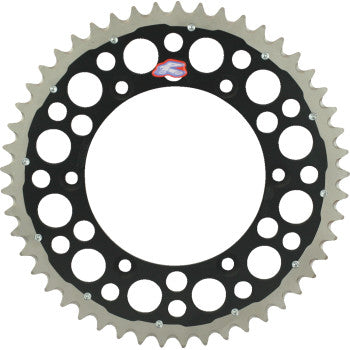

Twinring™ Rear Sprocket - 49 Tooth - Black - Kawasaki/Suzuki
- Inner ring is the same high strength Ultralight™ 7075 T-6 aluminum used for the standard Renthal sprocket
- Outer ring is electro-less nickel coated steel for ultimate durability and is designed with the minimum amount of material to keep weight down
- The outer ring is expanded at 200°C and then fitted over the inner; this interference fit combined with the wave pattern ensures a permanent bond for the life of the chainwheel
- The flat socket head screws add additional strength to the chainwheel during side impacts and eliminates contact with the chain guide
- Self cleaning mud grooves between each tooth prevent dirt build upand reduce chainwheel wear and weight
- Will outlast a standard all aluminum sprocket by 3 times, yet is much lighter than an all steel rear sprocket
Specs
| PRODUCT NAME | SPROCKET |
| TYPE | DRIVE |
| MODEL | TWINRING |
| COLOR/FINISH | BLACK |
| MATERIAL | 7075-T6 ALUMINUM |
| TOOTH COUNT | 49 |
| CHAIN SIZE | 520 |
| MOUNTING POSITION | REAR |
| UNITS | EACH |
| RIDING STYLE | STREET / OFF-ROAD / ADVENTURE TOURING / DUAL-SPORT |
Fitments
|
|
|
|
POSITION | NOTES |
|---|---|---|---|---|
| 2010-2019 | Suzuki | RMX450Z | - | - |
| 2008 | Suzuki | RM 125 | - | - |
| 2007-2025 | Suzuki | RMZ250 | - | - |
| 2005-2025 | Suzuki | RMZ450 | - | - |
| 2005-2024 | Suzuki | DR-Z400SM | - | - |
| 2004-2007 | Suzuki | DR-Z250 | - | - |
| 2003-2004 | Kawasaki | KLX 400 | - | - |
| 2003-2004 | Kawasaki | KLX400R | - | - |
| 2001-2019 | Suzuki | DR-Z400S | - | - |
| 2000-2011 | Suzuki | DR-Z400E | - | - |
| 2000-2011 | Suzuki | DR-Z400 | - | - |
| 2000-2004 | Suzuki | DR-Z 400 SM | - | - |
| 1999-2001 | Suzuki | RMX 250 | - | - |
| 1990-1999 | Suzuki | DR350 | - | - |
| 1989-2008 | Suzuki | RM250 | - | - |
| 1989-1998 | Suzuki | RMX250 | - | - |
| 1980-2007 | Suzuki | RM125 |
