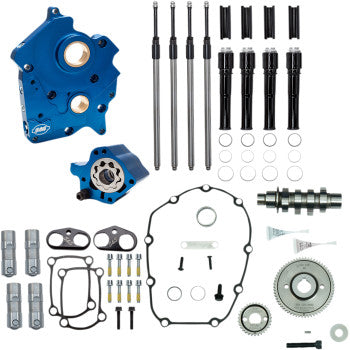

Features
- All parts in each kit are matched to ensure superior quality, fit, finish and performance
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and scavenge sides
- Adjustable Pressure Relief Valve is adjustable with unit installed in engine
- Magnet in cam chest to help to stop debris from entering oil pump
- S&S Quickee Pushrods with finished pushrod tubes
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
- Improved tappet stability in high-lift and high-rpm situations
- Provides improved cam timing accuracy and eliminates the stock cam chain tensioner
- Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
- Made in the USA
Specs
| Product Name | Camchest Kit |
| Type | Gear |
| Application | Oil Cooled |
| Model | 475 HP |
| Grind | 475G |
| Intake Lift | 0.475" |
| Intake Open | 6.2° Front, 2.2° Rear |
| Intake Close | 27.2° Front, 31.2° Rear |
| Intake Duration | 213.5° Front, 213.5° Rear |
| Intake Lift at TDC | 0.107" Front, 0.093" Rear |
| Intake Lobe Centerline | 100.5° Front, 104.5° Rear |
| Exhaust Lift | 0.475" |
| Exhaust Open | 55.5° Front, 52.2° Rear |
| Exhaust Close | 28.5° Front, 20.2° Rear |
| Exhaust Duration | 263.9° Front, 252.5° Rear |
| Exhaust Lift at TDC | 0.208" Front, 0.170" Rear |
| Exhaust Lobe Centerline | 103.5° Front, 106.0° Rear |
| Features | Gloss Black Pushrod Tubes |
| Units | Kit |
| Riding Style | Street |
