Features
- All parts in each kit are matched to ensure superior quality, fit, finish and performance
- Oil pump and cam plate are precision-machined from billet aluminum with a blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for the flywheel cavity and cam chest
- Debris screens in both scavenge pickups
- Increased oil flow capacity on both the feed and scavenge sides
- Adjustable Pressure Relief Valve is adjustable with unit installed in engine
- Magnet in cam chest to help to stop debris from entering oil pump
- S&S Quickee Pushrods with finished pushrod tubes
- S&S premium tappets
- Billet aluminum tappet cuffs have a hard-anodized black coating and are stronger than stock to eliminate distortion
- Improved tappet stability in high-lift and high-rpm situations
- Provides improved cam timing accuracy and eliminates the stock cam chain tensioner

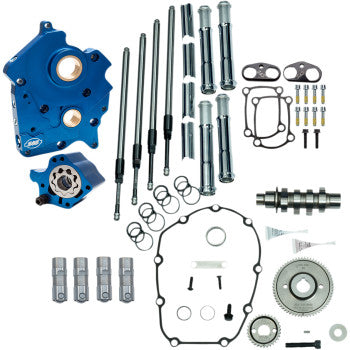

- Includes outer drive gears, all gaskets, bearings, and hardware required for a complete installation
- Made in the USA
Specs
| Product Name | Camchest Kit |
| Type | Gear |
| Application | Water Cooled |
| Model | 465 Performance |
| Grind | 465G |
| Intake Lift | 0.462" |
| Intake Open | 2.6° Front, 2.8° Rear |
| Intake Close | 14.6° Front, 14.4° Rear |
| Intake Duration | 197.2° |
| Intake Lift at TDC | 0.087° Front, 0.088° Rear |
| Intake Lobe Centerline | 96.0° Front, 95.8° Rear |
| Exhaust Lift | 0.462" |
| Exhaust Open | 30.1° Front, 33.1° Rear |
| Exhaust Close | 8.8° Front, 5.8° Rear |
| Exhaust Duration | 218.9° |
| Exhaust Lift at TDC | 0.109° Front, 0.098° Rear |
| Exhaust Lobe Centerline | 100.6° Front, 103.6° Rear |
| Features | Chrome Pushrod Tubes |
| Units | Kit |
| Riding Style | Street |
FITMENTS:
| 2023 | Harley-Davidson | FXBR Breakout 117 | - | - |
| 2022-2023 | Harley-Davidson | FXLRS Low Rider S 117 | - | - |
| 2022 | Harley-Davidson | Softail Street Bob FXBB | - | - |
| 2021-2023 | Harley-Davidson | FXBBS Street Bob 114 | - | - |
| 2020-2023 | Harley-Davidson | FLTRK Road Glide Limited | - | - |
| 2020-2023 | Harley-Davidson | FXST Softail Standard 107 | - | - |
| 2020-2022 | Harley-Davidson | FLHTCUTGSE CVO Tri Glide | - | - |
| 2020-2021 | Harley-Davidson | FXLRS Low Rider S 114 | - | - |
| 2019-2022 | Harley-Davidson | FLHT Electra Glide Standard | - | - |
| 2019-2020 | Harley-Davidson | FXDRS FXDR 114 | - | - |
| 2018-2023 | Harley-Davidson | FLFBS Fat Boy 114 | - | - |
| 2018-2023 | Harley-Davidson | FLHCS Heritage Classic 114 | - | - |
| 2018-2023 | Harley-Davidson | FLTRXSE CVO Road Glide | - | - |
| 2018-2021, 2023 | Harley-Davidson | FXFBS Fat Bob 114 | - | - |
| 2018-2021 | Harley-Davidson | FLHC Heritage Classic 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSB Sport Glide 107 | - | - |
| 2018-2021 | Harley-Davidson | FLSL Softail Slim 107 | - | - |
| 2018-2020 | Harley-Davidson | FXBRS Breakout 114 | - | - |
| 2018-2020 | Harley-Davidson | FXBB Street Bob 107 | - | - |
| 2018-2020 | Harley-Davidson | FXLR Low Rider 107 | - | - |
| 2018-2020 | Harley-Davidson | FLDE Deluxe 107 | - | - |
| 2018-2019 | Harley-Davidson | FXBR Breakout 107 | - | - |
| 2018-2019 | Harley-Davidson | FXFB Fat Bob 107 | - | - |
| 2018-2019 | Harley-Davidson | FLFB Fat Boy 107 | - | - |
| 2017-2023 | Harley-Davidson | FLHRXS Road King Special | - | - |
| 2017-2023 | Harley-Davidson | FLHTCUTG Tri Glide Ultra | - | - |
| 2017-2023 | Harley-Davidson | FLHTK Ultra Limited | - | - |
| 2017-2023 | Harley-Davidson | FLHX Street Glide | - | - |
| 2017-2023 | Harley-Davidson | FLHXS Street Glide Special | - | - |
| 2017-2023 | Harley-Davidson | FLHXSE CVO Street Glide | - | - |
| 2017-2023 | Harley-Davidson | FLRT Freewheeler | - | - |
| 2017-2023 | Harley-Davidson | FLTRX Road Glide | - | - |
| 2017-2023 | Harley-Davidson | FLTRXS Road Glide Special | - | - |
| 2017-2023 | Harley-Davidson | Electra Glide Police FLHTPI | - | - |
| 2017-2022 | Harley-Davidson | FLHR Road King | - | - |
| 2017-2021 | Harley-Davidson | FLHTKSE CVO Limited | - | - |
| 2017-2019 | Harley-Davidson | FLHTKL Ultra Limited Low | - | - |
| 2017-2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic | - | - |
| 2017-2019 | Harley-Davidson | FLTRU Road Glide Ultra |
