Features
- Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes, making higher cam lifts possible
- Increase valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
- Provides strong low end torque and horsepower
- Strongest from 1500-5000 rpm
- Material must be removed from inner surface of the stock gear cover to install
- A hydraulic press and other professional level tools are required for installation
- Cam bearings and gaskets must be replaced
- S&S recommends that adjustable pushrod/cover kit be used (sold separately)

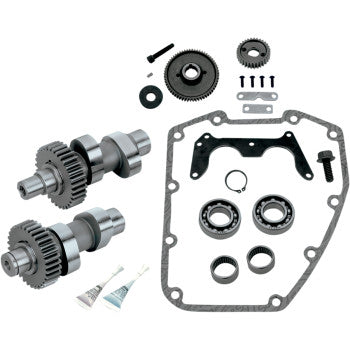

- Kit includes camshafts, inner gears, outer drive gears, inner, outer bearings, gasket and instructions
- Made in the USA
- Due to inherent characteristics of gear drives, more valve train noise maybe heard.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Not recommended for engines having compression ratios greater the 10.1:1.
Specs
| Product Name | Camshaft Kit |
| Type | Gear |
| Application | Intake / Exhaust |
| Grind | 583 Series |
| Intake Lift | 0.583" |
| Intake Open | 5° |
| Intake Close | 18° |
| Intake Duration | 203° |
| Intake Lift at TDC | 0.113" |
| Intake Lobe Centerline | 96.5° |
| Exhaust Lift | 0.583" |
| Exhaust Open | 58° |
| Exhaust Close | 24° |
| Exhaust Duration | 262° |
| Exhaust Lift at TDC | 0.206" |
| Exhaust Lobe Centerline | 107° |
| Units | Kit |
| Riding Style | Street |
FITMENTS:
| 2006 | Harley-Davidson | FLHX Street Glide | - | - |
| 2006 | Harley-Davidson | FLHXI Street Glide | - | - |
| 2006 | Harley-Davidson | FLSTI Heritage Softail | - | - |
| 2006 | Harley-Davidson | FLST Heritage Softail | - | - |
| 2005-2006 | Harley-Davidson | FLSTSC Softail Springer Classic | - | - |
| 2005-2006 | Harley-Davidson | FLSTN Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTNI Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTSCI Softail Springer Classic | - | - |
| 2005 | Harley-Davidson | FXDC Super Glide Custom | - | - |
| 2005 | Harley-Davidson | FXDCI Super Glide Custom | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2004-2006 | Harley-Davidson | FLHRSI Road King Custom | - |
Notes: 2004
Requires high-lift springs. |
| 2004-2006 | Harley-Davidson | FLHRS Road King Custom | - |
Notes: 2004
Requires high-lift springs. |
| 2004-2005 | Harley-Davidson | FXDLI Dyna Low Rider | - |
Notes: 2004
Requires high-lift springs. |
| 2004-2005 | Harley-Davidson | FXDXI Dyna Super Glide Sport | - |
Notes: 2004
Requires high-lift springs. |
| 2004-2005 | Harley-Davidson | FXDI Dyna Super Glide | - |
Notes: 2004
Requires high-lift springs. |
| 2004-2005 | Harley-Davidson | FXDWGI Dyna Wide Glide | - |
Notes: 2004
Requires high-lift springs. |
| 2003-2006 | Harley-Davidson | FLHTI Electra Glide Standard | - |
Notes: 2003-2004
Requires high-lift springs. |
| 2002-2006 | Harley-Davidson | FLSTFI Fat Boy | - |
Notes: 2002-2004
Requires high-lift springs. |
| 2001-2006 | Harley-Davidson | FXSTDI Softail Deuce | - |
Notes: 2001-2004
Requires high-lift springs. |
| 2001-2006 | Harley-Davidson | FXSTBI Night Train | - |
Notes: 2001-2004
Requires high-lift springs. |
| 2001-2006 | Harley-Davidson | FLSTCI Heritage Softail Classic | - |
Notes: 2001-2004
Requires high-lift springs. |
| 2001-2006 | Harley-Davidson | FXSTI Softail Standard | - |
Notes: 2001-2004
Requires high-lift springs. |
| 2001-2006 | Harley-Davidson | FXSTSI Springer Softail | - |
Notes: 2001-2004
Requires high-lift springs. |
| 2001-2003 | Harley-Davidson | FXDXT Dyna Super Glide T-Sport | - |
Notes: 2001-2003
Requires high-lift springs. |
| 2001-2003 | Harley-Davidson | FLSTSI Heritage Springer | - |
Notes: 2001-2003
Requires high-lift springs. |
| 2000-2006 | Harley-Davidson | FXSTD Softail Deuce | - |
Notes: 2000-2004
Requires high-lift springs. |
| 2000-2006 | Harley-Davidson | FLHRI Road King | - |
Notes: 2000-2004
Requires high-lift springs. |
| 2000-2006 | Harley-Davidson | FLSTC Heritage Softail Classic | - |
Notes: 2000-2004
Requires high-lift springs. |
| 2000-2006 | Harley-Davidson | FLSTF Fat Boy | - |
Notes: 2000-2004
Requires high-lift springs. |
| 2000-2006 | Harley-Davidson | FXST Softail Standard | - |
Notes: 2000-2004
Requires high-lift springs. |
| 2000-2006 | Harley-Davidson | FXSTB Night Train | - |
Notes: 2000-2004
Requires high-lift springs. |
| 2000-2006 | Harley-Davidson | FXSTS Springer Softail | - |
Notes: 2000-2004
Requires high-lift springs. |
| 2000-2003 | Harley-Davidson | FLSTS Heritage Springer | - |
Notes: 2000-2003
Requires high-lift springs. |
| 1999-2006 | Harley-Davidson | FLTRI Road Glide | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2006 | Harley-Davidson | FLHRCI Road King Classic | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2006 | Harley-Davidson | FLHTCUI Electra Glide Ultra Classic | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2006 | Harley-Davidson | FLHR Road King | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2006 | Harley-Davidson | FLHT Electra Glide Standard | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2006 | Harley-Davidson | FLHTCI Electra Glide Classic | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2005 | Harley-Davidson | FXDX Dyna Super Glide Sport | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2005 | Harley-Davidson | FLHTC Electra Glide Classic | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2005 | Harley-Davidson | FXD Dyna Super Glide | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2005 | Harley-Davidson | FXDL Dyna Low Rider | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2005 | Harley-Davidson | FXDWG Dyna Wide Glide | - |
Notes: 1999-2004
Requires high-lift springs. |
| 1999-2002 | Harley-Davidson | FLTR Road Glide | - |
Notes: 1999-2002
Requires high-lift springs. |
| 1999-2000 | Harley-Davidson | FXDS-Conv Dyna Convertible | - |
Notes: 1999-2000
Requires high-lift springs. |
| 1999 | Harley-Davidson | Road King EFI FLHR | - |
Notes: 1999
Requires high-lift springs. |
| 1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - |
Notes: 1999
Requires high-lift springs. |
