Features
- Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1
- Strongest from 3200-3700 rpm
- Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive
- Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes resulting in higher cam lifts
- Material must be removed from inner surface of stock gear cover to install
- A hydraulic press and other professional level tools required to install kit
- S&S recommends that adjustable pushrod/cover kit be used
- Cam bearings and gasket must be replaced when installing new cams

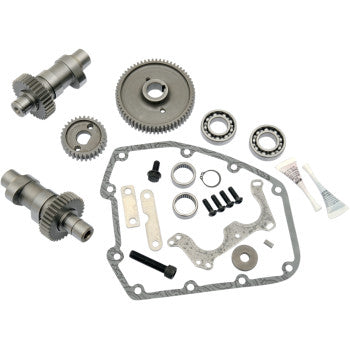

- Kit includes camshafts, gearcover gasket, bearings, oil passage block off kit, retaining ring, o-ring, inner and outer gears
- Made in the USA
- Due to the inherent characteristics of gear drives, you may experience more valve train noise.
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Product Name | Camshaft Kit |
| Type | Gear |
| Application | Intake / Exhaust |
| Grind | 570 Series |
| Intake Lift | 0.570" |
| Intake Open | 20° |
| Intake Close | 40° |
| Intake Duration | 240° |
| Intake Lift at TDC | 0.187" |
| Intake Lobe Centerline | 100° |
| Exhaust Lift | 0.570" |
| Exhaust Open | 55° |
| Exhaust Close | 20° |
| Exhaust Duration | 255° |
| Exhaust Lift at TDC | 0.179" |
| Exhaust Lobe Centerline | 107.5° |
| Units | Kit |
| Riding Style | Street |
Fitments
|
|
|
|
Position | Notes |
|---|---|---|---|---|
| 2006 | Harley-Davidson | FLHX Street Glide | - | - |
| 2006 | Harley-Davidson | FLSTI Heritage Softail | - | - |
| 2006 | Harley-Davidson | FLHXI Street Glide | - | - |
| 2006 | Harley-Davidson | FLST Heritage Softail | - | - |
| 2005-2006 | Harley-Davidson | FLSTN Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTSCI Softail Springer Classic | - | - |
| 2005-2006 | Harley-Davidson | FLSTNI Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTSC Softail Springer Classic | - | - |
| 2005 | Harley-Davidson | FXDC Super Glide Custom | - | - |
| 2005 | Harley-Davidson | FXDCI Super Glide Custom | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2004-2006 | Harley-Davidson | FLHRSI Road King Custom | - | - |
| 2004-2006 | Harley-Davidson | FLHRS Road King Custom | - | - |
| 2004-2005 | Harley-Davidson | FXDXI Dyna Super Glide Sport | - | - |
| 2004-2005 | Harley-Davidson | FXDI Dyna Super Glide | - | - |
| 2004-2005 | Harley-Davidson | FXDLI Dyna Low Rider | - | - |
| 2004-2005 | Harley-Davidson | FXDWGI Dyna Wide Glide | - | - |
| 2003-2006 | Harley-Davidson | FLHTI Electra Glide Standard | - | - |
| 2002-2006 | Harley-Davidson | FLSTFI Fat Boy | - | - |
| 2001-2006 | Harley-Davidson | FXSTI Softail Standard | - | - |
| 2001-2006 | Harley-Davidson | FXSTSI Springer Softail | - | - |
| 2001-2006 | Harley-Davidson | FXSTDI Softail Deuce | - | - |
| 2001-2006 | Harley-Davidson | FXSTBI Night Train | - | - |
| 2001-2006 | Harley-Davidson | FLSTCI Heritage Softail Classic | - | - |
| 2001-2003 | Harley-Davidson | FLSTSI Heritage Springer | - | - |
| 2001-2003 | Harley-Davidson | FXDXT Dyna Super Glide T-Sport | - | - |
| 2000-2006 | Harley-Davidson | FXSTD Softail Deuce | - | - |
| 2000-2006 | Harley-Davidson | FLHRI Road King | - | - |
| 2000-2006 | Harley-Davidson | FLSTC Heritage Softail Classic | - | - |
| 2000-2006 | Harley-Davidson | FLSTF Fat Boy | - | - |
| 2000-2006 | Harley-Davidson | FXST Softail Standard | - | - |
| 2000-2006 | Harley-Davidson | FXSTB Night Train | - | - |
| 2000-2006 | Harley-Davidson | FXSTS Springer Softail | - | - |
| 2000-2003 | Harley-Davidson | FLSTS Heritage Springer | - | - |
| 1999-2006 | Harley-Davidson | FLHT Electra Glide Standard | - | - |
| 1999-2006 | Harley-Davidson | FLHTCUI Electra Glide Ultra Classic | - | - |
| 1999-2006 | Harley-Davidson | FLHTCI Electra Glide Classic | - | - |
| 1999-2006 | Harley-Davidson | FLHR Road King | - | - |
| 1999-2006 | Harley-Davidson | FLHRCI Road King Classic | - | - |
| 1999-2006 | Harley-Davidson | FLTRI Road Glide | - | - |
| 1999-2005 | Harley-Davidson | FLHTC Electra Glide Classic | - | - |
| 1999-2005 | Harley-Davidson | FXDX Dyna Super Glide Sport | - | - |
| 1999-2005 | Harley-Davidson | FXD Dyna Super Glide | - | - |
| 1999-2005 | Harley-Davidson | FXDL Dyna Low Rider | - | - |
| 1999-2005 | Harley-Davidson | FXDWG Dyna Wide Glide | - | - |
| 1999-2002 | Harley-Davidson | FLTR Road Glide | - | - |
| 1999-2000 | Harley-Davidson | FXDS-Conv Dyna Convertible | - | - |
| 1999 | Harley-Davidson | Road King EFI FLHR | - | - |
| 1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - |
