Features
- Cams designed as bolt-in cam for 88", 95", 96" and 103" engines with compression ratios below 9.7:1

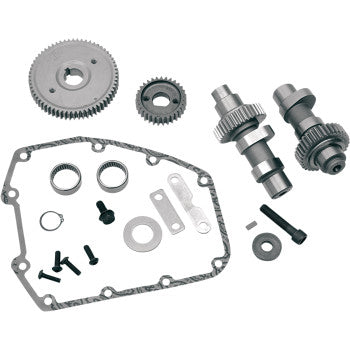

- Kit includes camshafts with inner gears, outer cam drive gear kit and camshaft installation kit: gearcover gasket, bearings, oil passage block off kit, retaining ring. o-ring and instructions
- Stock pushrods and valve springs are acceptable
- Strongest from 3000-5500 RPM
- Made in the USA
Specs
| Product Name | Camshaft Kit |
| Type | Gear |
| Application | Exhaust / Intake |
| Grind | 510 Series |
| Intake Lift | 0.510" |
| Intake Open | 20° |
| Intake Close | 38° |
| Intake Duration | 238° |
| Intake Lift at TDC | 0.187" |
| Intake Lobe Centerline | 99° |
| Exhaust Lift | 0.510" |
| Exhaust Open | 52° |
| Exhaust Close | 20° |
| Exhaust Duration | 252° |
| Exhaust Lift at TDC | 0.178" |
| Exhaust Lobe Centerline | 106° |
| Units | Kit |
| Riding Style | Street |
