Features
- Bolt in cams for 88 CID engines with stock compression ratios
- Increases valve timing accuracy by eliminating timing chain lash and loosely fit stock chain drive
- Reverses the rear cam's direction of rotation, providing additional operating clearance between cam lobes; resulting in higher cam lifts that are possible with the gear kit
- Material must be removed from inner surface of the stock gear cover to install
- S&S recommends that adjustable pushrod/cover kit to be used
- Cam bearings and gaskets must be replaced when installing new cams
- Lowers loft allows cams to be bolted into 96"-106" '06 engines with stock valve springs
- Strongest from 1000-4500 rpm
- 180 psi cranking compression; no need for compression releases
- A hydraulic press and other professional level tools are required to install

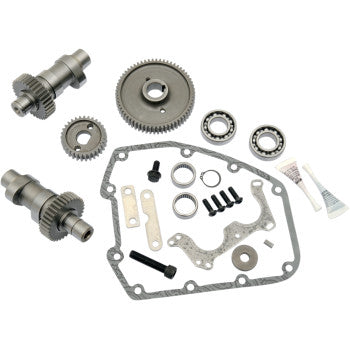

- Kit includes cams, inner gears, outer drive gears, inner and outer bearings, gaskets and instructions
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Due to the inherent characteristics of gear drives, you may experience more valve train noise.
Specs
| Product Name | Cam Kit |
| Type | Gear |
| Application | Intake / Exhaust |
| Grind | 509 Series |
| Intake Lift | 0.509" |
| Intake Open | 18° |
| Intake Close | 18° |
| Intake Duration | 216° |
| Intake Lift at TDC | 0.174" |
| Intake Lobe Centerline | 90° |
| Exhaust Lift | 0.509" |
| Exhaust Open | 46° |
| Exhaust Close | 11° |
| Exhaust Duration | 237° |
| Exhaust Lift at TDC | 0.140" |
| Exhaust Lobe Centerline | 107.5° |
| Units | Kit |
| Riding Style | Street |
FITMENTS:
| 2006 | Harley-Davidson | FLSTI Heritage Softail | - | - |
| 2006 | Harley-Davidson | FLHXI Street Glide | - | - |
| 2006 | Harley-Davidson | FLHX Street Glide | - | - |
| 2006 | Harley-Davidson | FLST Heritage Softail | - | - |
| 2005-2006 | Harley-Davidson | FLSTNI Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTN Softail Deluxe | - | - |
| 2005-2006 | Harley-Davidson | FLSTSCI Softail Springer Classic | - | - |
| 2005-2006 | Harley-Davidson | FLSTSC Softail Springer Classic | - | - |
| 2005 | Harley-Davidson | FXDCI Super Glide Custom | - | - |
| 2005 | Harley-Davidson | FXDC Super Glide Custom | - | - |
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF | - | - |
| 2004-2006 | Harley-Davidson | FLHRSI Road King Custom | - | - |
| 2004-2006 | Harley-Davidson | FLHRS Road King Custom | - | - |
| 2004-2005 | Harley-Davidson | FXDI Dyna Super Glide | - | - |
| 2004-2005 | Harley-Davidson | FXDLI Dyna Low Rider | - | - |
| 2004-2005 | Harley-Davidson | FXDXI Dyna Super Glide Sport | - | - |
| 2004-2005 | Harley-Davidson | FXDWGI Dyna Wide Glide | - | - |
| 2003-2006 | Harley-Davidson | FLHTI Electra Glide Standard | - | - |
| 2002-2006 | Harley-Davidson | FLSTFI Fat Boy | - | - |
| 2001-2006 | Harley-Davidson | FXSTDI Softail Deuce | - | - |
| 2001-2006 | Harley-Davidson | FXSTBI Night Train | - | - |
| 2001-2006 | Harley-Davidson | FLSTCI Heritage Softail Classic | - | - |
| 2001-2006 | Harley-Davidson | FXSTI Softail Standard | - | - |
| 2001-2006 | Harley-Davidson | FXSTSI Springer Softail | - | - |
| 2001-2003 | Harley-Davidson | FXDXT Dyna Super Glide T-Sport | - | - |
| 2001-2003 | Harley-Davidson | FLSTSI Heritage Springer | - | - |
| 2000-2006 | Harley-Davidson | FXSTD Softail Deuce | - | - |
| 2000-2006 | Harley-Davidson | FLHRI Road King | - | - |
| 2000-2006 | Harley-Davidson | FLSTC Heritage Softail Classic | - | - |
| 2000-2006 | Harley-Davidson | FLSTF Fat Boy | - | - |
| 2000-2006 | Harley-Davidson | FXST Softail Standard | - | - |
| 2000-2006 | Harley-Davidson | FXSTB Night Train | - | - |
| 2000-2006 | Harley-Davidson | FXSTS Springer Softail | - | - |
| 2000-2003 | Harley-Davidson | FLSTS Heritage Springer | - | - |
| 1999-2006 | Harley-Davidson | FLHR Road King | - | - |
| 1999-2006 | Harley-Davidson | FLHRCI Road King Classic | - | - |
| 1999-2006 | Harley-Davidson | FLHTCUI Electra Glide Ultra Classic | - | - |
| 1999-2006 | Harley-Davidson | FLTRI Road Glide | - | - |
| 1999-2006 | Harley-Davidson | FLHT Electra Glide Standard | - | - |
| 1999-2006 | Harley-Davidson | FLHTCI Electra Glide Classic | - | - |
| 1999-2005 | Harley-Davidson | FXDX Dyna Super Glide Sport | - | - |
| 1999-2005 | Harley-Davidson | FLHTC Electra Glide Classic | - | - |
| 1999-2005 | Harley-Davidson | FXD Dyna Super Glide | - | - |
| 1999-2005 | Harley-Davidson | FXDL Dyna Low Rider | - | - |
| 1999-2005 | Harley-Davidson | FXDWG Dyna Wide Glide | - | - |
| 1999-2002 | Harley-Davidson | FLTR Road Glide | - | - |
| 1999-2000 | Harley-Davidson | FXDS-Conv Dyna Convertible | - | - |
| 1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU | - | - |
| 1999 | Harley-Davidson | Road King EFI FLHR |
