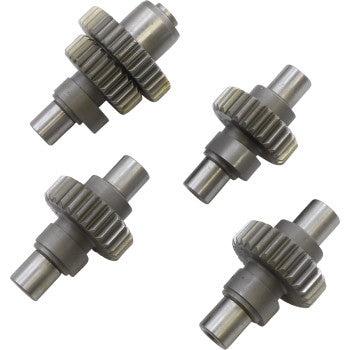

Camshaft - 500 - Buell | XL
- Tested on the dyno, street and track before being offered to the public
- Bolt in cams that provide excellent torque with stock or ported heads
- Recommended for modified engines up to 89" displacement and compression ratio of 9.0:1 to 10.5:1
- Will work in 89" - 100" engines with less than 9.0:1 compression ratio
- 2000 to 6000 rpm
- Works with stock valve springs and stock non-adjustable pushrods
- Models with stock flywheels require use of '91-'99 style pinion gear (sold separately).
- Installer must check coil bind, valve to valve clearance, valve to piston clearance and cam lobe to case clearance.
Specs
| Product Name | Camshaft |
| Application | Exhaust / Intake |
| Color/Finish | Raw |
| Grind | 500 |
| Intake Lift | 0.500" |
| Intake Open | 34° |
| Intake Duration | 264° |
| Intake Lift at TDC | 0.241" |
| Exhaust Lift | 0.500" |
| Exhaust Open | 56° |
| Exhaust Close | 28° |
| Exhaust Duration | 264° |
| Exhaust Lift at TDC | 0.212" |
| Units | Set |
| Riding Style | Street |
FITMENTS:
| 2018-2019 | Harley-Davidson | XL1200NS Iron 1200 | - | - |
| 2018-2019 | Harley-Davidson | XL1200XS Forty-Eight Special | - | - |
| 2016-2019 | Harley-Davidson | XL1200CX Roadster | - | - |
| 2014-2017 | Harley-Davidson | XL1200T SuperLow 1200T | - | - |
| 2012-2016 | Harley-Davidson | XL1200V Seventy-Two | - | - |
| 2011-2019 | Harley-Davidson | XL883L SuperLow | - | - |
| 2011-2012 | Harley-Davidson | Sportster 1200 XR | - | - |
| 2010-2019 | Harley-Davidson | XL1200X Forty-Eight | - | - |
| 2010-2012 | Harley-Davidson | XR1200X | - | - |
| 2010 | Harley-Davidson | XR1200 | - | - |
| 2009-2019 | Harley-Davidson | XL883N Iron 883 | - | - |
| 2009 | Harley-Davidson | 883 EFI XL | - | - |
| 2009 | Harley-Davidson | Sportster 1200 X XR | - | - |
| 2007-2012 | Harley-Davidson | XL1200N Sportster 1200 Nightster | - | - |
| 2007 | Harley-Davidson | XL50 50th Anniversary Sportster | - | - |
| 2007 | Harley-Davidson | 883 Roadster XLR | - | - |
| 2006-2011 | Harley-Davidson | XL1200L Sportster 1200 Low | - | - |
| 2006 | Harley-Davidson | 883 Low EFI XLL | - | - |
| 2006 | Harley-Davidson | 1200 Low EFI XLL | - | - |
| 2006 | Harley-Davidson | 1200 Roadster EFI XLR | - | - |
| 2005-2010 | Harley-Davidson | XL883L Sportster 883 Low | - | - |
| 2004-2009 | Harley-Davidson | XL1200R Sportster 1200 Roadster | - | - |
| 2004-2008 | Harley-Davidson | XL883 Sportster | - | - |
| 2002-2006 | Harley-Davidson | 1200 Custom EFI XLC | - | - |
| 2002-2003, 2011-2017 | Harley-Davidson | 1200 XLCP | - | - |
| 2002-2003, 2005-2007 | Harley-Davidson | XL883R Sportster 883 Roadster | - | - |
| 2002-2003, 2005-2006 | Harley-Davidson | 883 Roadster EFI XLR | - | - |
| 2002 | Buell | M2L Cyclone | - | - |
| 2002 | Buell | X1W White Lightning | - | - |
| 2002 | Buell | XB9R Firebolt | - | - |
| 2001 | Buell | M2 Cyclone Low | - | - |
| 2000-2002 | Buell | Blast | - | - |
| 1999-2009 | Harley-Davidson | XL883C Sportster 883 Custom | - | - |
| 1999-2006 | Harley-Davidson | 883 Custom EFI XLC | - | - |
| 1999-2003 | Harley-Davidson | Sportster 1200 XLH | - | - |
| 1999-2002 | Buell | X1 Lightning | - | - |
| 1998 | Harley-Davidson | 883 Custom XLC | - | - |
| 1998 | Buell | S1 White Lightning | - | - |
| 1997-2002 | Buell | M2 Cyclone | - | - |
| 1997-2002 | Buell | S3 Thunderbolt | - | - |
| 1997-2002 | Buell | S3T Thunderbolt | - | - |
| 1996-2019 | Harley-Davidson | XL1200C Sportster 1200 Custom | - | - |
| 1996-2003 | Harley-Davidson | XL1200S Sportster 1200 Sport | - | - |
| 1996-1998 | Buell | S1 Lightning | - | - |
| 1995-1996 | Buell | S2T Thunderbolt | - | - |
| 1994-1995 | Buell | S2 Thunderbolt | - | - |
| 1988-1998 | Harley-Davidson | XLH1200 | - | - |
| 1988 | Harley-Davidson | Sportster 1100 XLH | - | - |
| 1987-1998, 2002-2003 | Harley-Davidson | XLH883HUG Sportster 883 Hugger | - | - |
| 1987, 1989-2003 | Harley-Davidson | Sportster 883 XLH | - | - |
| 1986-1995 | Harley-Davidson | XLH883DLX Sportster 883 Deluxe | - | - |
| 1986-1987 | Harley-Davidson | XLH1100 | - | - |
| 1986, 1988, 1999-2001 | Harley-Davidson | XLH883 |
