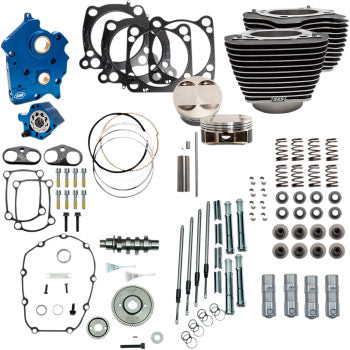

S&S Cycle 128" Power Package - Gear Drive - Wrinkle Black with Highlighted Fins - 114"/117" M8
$3,359.95
Unit price /
Unavailable
S&S Cycle 128" Power Package - Gear Drive - Wrinkle Black with Highlighted Fins - 114"/117" M8
Delivery and Shipping
Delivery and Shipping
Ships Within 2-5 business days
For Pickup Call for availability
Features
- Made in the USA
- Big Bore Kit
- Big-bore bolt-on kit increases 114"/117" with 4-1/2" stroke M-Eight to 128" with no case machining required
- 4-1/4" bore cylinders with 11:1 forged pistons
- Oil Pump/Cam Plate
- S&S oil pump/cam plate with blue anodized finish
- Passage plugs are removable for servicing
- Independent scavenge sections for flywheel cavity and camchest
- Debris screen in both scavenge pickups
- Magnet in camchest to help prevent debris from entering the oil pump
- Increased oil flow capacity on both the oil feed and scavenge side
- Adjustable pressure relief valve can be adjusted with the unit installed in the engine
- Pushrods
- Quikee pushrods with chrome pushrod tubes
- Tappets
- S&S premium tappets
- Tappet Cuffs
- S&S hard-anodized, black coated tappet cuffs are billet aluminum construction
- Improve tappet stability in high-lift, high-rpm situations
- Cam
- S&S 550 cams designed for big bore applications
- Valve Springs
- S&S valve springs work with cams up to .605" lift
- High-performance conical single-wire spring design
Specs
| Product Name | Performance Kit |
| Type | Engine |
| Style | Big Bore |
| Model | Power Package |
| Color/Finish | Highlighted Fins / Wrinkle Black |
| Stroke Length | 4.50" |
| Displacement | 128" |
| Bore Size | 4.250" |
| Compression Ratio | 11.1:1 |
| Cam Drive Type | Gear |
| Cooling System | Oil Cooled |
| Units | Kit |
| Riding Style | Street |
Fitments
|
|
|
|
Position | Notes |
|---|---|---|---|---|
| 2022-2023 | Harley-Davidson | FXLRS Low Rider S 117 | - | - |
| 2022-2023 | Harley-Davidson | FXLRST Low Rider ST 117 | - | - |
| 2020-2021 | Harley-Davidson | FXLRS Low Rider S 114 | - | - |
| 2018-2023 | Harley-Davidson | FLFBS Fat Boy 114 | - | - |
| 2018-2020 | Harley-Davidson | FXBRS Breakout 114 | - | - |
| 2017-2023 | Harley-Davidson | FLTRXS Road Glide Special | - | - |
| 2017-2023 | Harley-Davidson | FLHXS Street Glide Special | - | - |
| 2017-2019 | Harley-Davidson | FLHTCU Electra Glide Ultra Classic |
