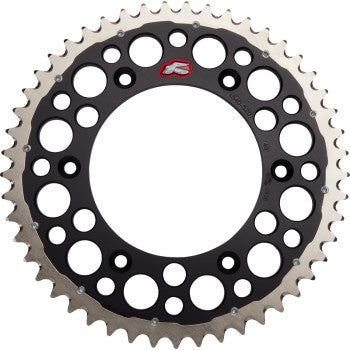

Twinring™ Rear Sprocket - 49 Tooth - Black - Honda
- Inner ring is the same high strength Ultralight™ 7075 T-6 aluminum used for the standard Renthal sprocket
- Outer ring is electro-less nickel coated steel for ultimate durability and is designed with the minimum amount of material to keep weight down
- The outer ring is expanded at 200°C and then fitted over the inner; this interference fit combined with the wave pattern ensures a permanent bond for the life of the chainwheel
- The flat socket head screws add additional strength to the chainwheel during side impacts and eliminates contact with the chain guide
- Self cleaning mud grooves between each tooth prevent dirt build upand reduce chainwheel wear and weight
- Will outlast a standard all aluminum sprocket by 3 times, yet is much lighter than an all steel rear sprocket
Specs
| PRODUCT NAME | SPROCKET |
| TYPE | DRIVE |
| MODEL | TWINRING |
| COLOR/FINISH | BLACK |
| MATERIAL | 7075-T6 ALUMINUM |
| TOOTH COUNT | 49 |
| CHAIN SIZE | 520 |
| MOUNTING POSITION | REAR |
| UNITS | EACH |
| RIDING STYLE | ADVENTURE TOURING / DUAL-SPORT / STREET / OFF-ROAD |
Fitments
|
|
|
|
POSITION | NOTES |
|---|---|---|---|---|
| 2025 | Honda | CRF250RWE | - | - |
| 2021-2025 | Honda | CRF450RL | - | - |
| 2019-2025 | Honda | CRF450RWE | - | - |
| 2019-2025 | Honda | CRF250RX | - | - |
| 2019-2024 | Honda | CRF250F | - | - |
| 2019 | Honda | CRF450L | - | - |
| 2004-2025 | Honda | CRF250R | - | - |
| 2004-2016 | Honda | CRF250X | - | - |
| 2003-2017 | Honda | CRF150F | - | - |
| 2003-2017 | Honda | CRF230F | - | - |
| 2002-2025 | Honda | CRF450RX | - | - |
| 2002-2025 | Honda | CRF450X | - | - |
| 2002-2025 | Honda | CRF450R | - | - |
| 2000-2007 | Honda | XR650R | - | - |
| 1996-2004 | Honda | XR400R | - | - |
| 1988-2005 | Honda | XR250R | - | - |
| 1986-2001 | Honda | CR500R | - | - |
| 1984-2007 | Honda | CR250R | - | - |
| 1983-2007 | Honda | CR125R | - |
