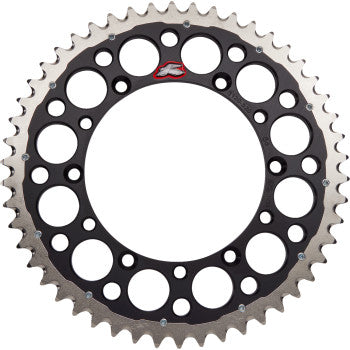

Twinring™ Rear Sprocket

Twinring™ Rear Sprocket - 50 Tooth - Black - Kawasaki/Suzuki

• Inner ring is the same high strength Ultralight™ 7075 T-6 aluminum used for the standard Renthal sprocket
• Outer ring is electro-less nickel coated steel for ultimate durability and is designed with the minimum amount of material to keep weight down
• The outer ring is expanded at 200°C and then fitted over the inner; this interference fit combined with the wave pattern ensures a permanent bond for the life of the chainwheel
• The flat socket head screws add additional strength to the chainwheel during side impacts and eliminates contact with the chain guide
• Self cleaning mud grooves between each tooth prevent dirt build upand reduce chainwheel wear and weight
• Will outlast a standard all aluminum sprocket by 3 times, yet is much lighter than an all steel rear sprocket

• Specs

  PRODUCT NAME	SPROCKET
  TYPE	DRIVE
  MODEL	TWINRING
  COLOR/FINISH	BLACK
  MATERIAL	7075-T6 ALUMINUM
  TOOTH COUNT	50
  CHAIN SIZE	520
  MOUNTING POSITION	REAR
  UNITS	EACH
  RIDING STYLE	STREET / OFF-ROAD / ADVENTURE TOURING / DUAL-SPORT

• Fitments

  			POSITION	NOTES
  2023-2024	Kawasaki	KLX230S	-	-
  2023-2024	Kawasaki	KX450X	-	-
  2023 , 2025	Kawasaki	KLX230R S	-	-
  2022-2024	Kawasaki	KLX300SM	-	-
  2021-2026	Kawasaki	KLX300	-	-
  2021-2024	Kawasaki	KX250X	-	-
  2021	Kawasaki	KX 250XC	-	-
  2020-2025	Kawasaki	KLX230R	-	-
  2020-2022	Kawasaki	KLX230	-	-
  2020-2021	Kawasaki	KLX230 ABS	-	-
  2020	Kawasaki	KLX250	-	-
  2019-2026	Kawasaki	KX450	-	-
  2017	Kawasaki	KLX 450 F	-	-
  2015 , 2017	Kawasaki	KLX 450 R	-	-
  2008-2014 , 2016 , 2018-2020	Kawasaki	KLX450R	-	-
  2008 , 2011 , 2015-2017	Kawasaki	KLX 250 S	-	-
  2008	Kawasaki	KX 250	-	-
  2006-2020	Kawasaki	KX450F	-	-
  2006-2008	Kawasaki	KX 125	-	-
  2006-2007 , 2009-2010 , 2012-2014	Kawasaki	KLX250S	-	-
  2006	Kawasaki	KDX 220 R	-	-
  2004-2020	Kawasaki	KX250F	-	-
  2004-2006	Suzuki	RMZ250	-	-
  1997-2008 , 2020-2022	Kawasaki	KLX300R	-	-
  1997-2006	Kawasaki	KDX 220	-	-
  1997-2005	Kawasaki	KDX220R	-	-
  1994-1998 , 2006-2017	Kawasaki	KLX 250	-	-
  1994-1996	Kawasaki	KLX250R	-	-
  1993-1996	Kawasaki	KLX 650 A	-	-
  1993-1996	Kawasaki	KLX650R	-	-
  1991-1994	Kawasaki	KDX250	-	-
  1987-2004	Kawasaki	KX500	-	-
  1985-2007 , 2019-2026	Kawasaki	KX250	-	-
  1985-2005	Kawasaki	KX125	-	-
  1984-2006	Kawasaki	KDX200
